0.9m extended table to increase the working range.
The smallest turning radius in the industry, compact body design, easy to work in a narrow space.
Intelligent control lifting system, make the work more convenient, improve work efficiency
Automatic pothole protection system and tilt protection system provide maximum safety.
Non-slip and wear-resistant solid tires, capable of 360° rotation.
(1)Heavy weight sensor.(Optional configuration)
(2)Connect to the AC power supply of the platform.(Optional configuration)
(3)Platform working light.(Optional configuration)
(4)Proportional control.
(5)Infinitely variable speed.
(6)Tilt protection system.
(7)Platform self-locking door.
(8)Extension platform.

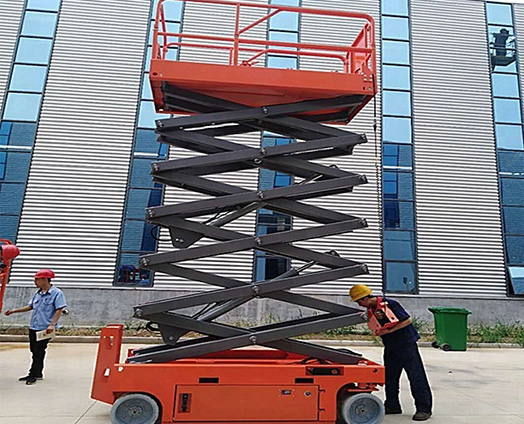

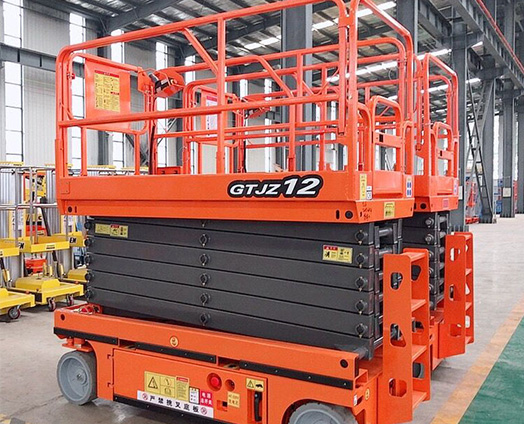

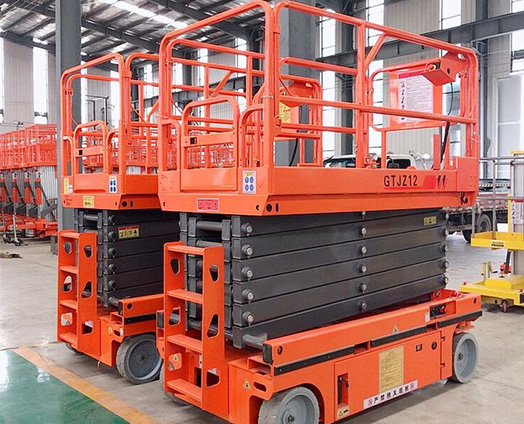

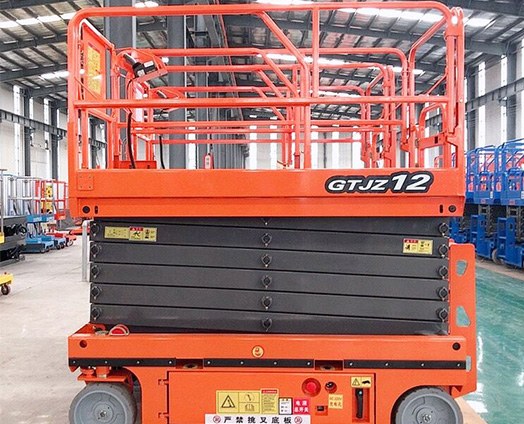

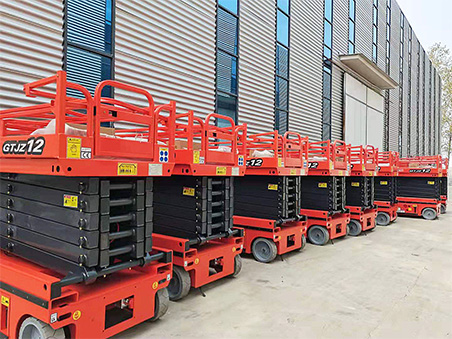

Product name：Self propelled scissor lift platform
Model：GTJZ
Type:Electric drive , hydraulic drive.
Carrying capacity : 230kg~500kg
Lifting height : 6m~14m
Operation : Full electric.
| Electric drive | ||||||
| Model | Table size(m) |
Load capacity |
Platform height | Overall size(m) | Extension of platform(m) | Overall weight(kg) |
| GTJZD-6 | 2.26*1.13 | 230kg | 6m | 2.4791.17*2.29 | 0.9 | 1900 |
| GTJZD-8 | 2.26*1.13 | 230kg | 8m | 2.47*1.17*2.31 | 0.9 | 2060 |
| GTJZD-10 | 2.26*1.13 | 230kg | 10m | 2.47*1.17*2.43 | 0.9 | 2300 |
| GTJZD-10 | 2.26*1.13 | 320kg | 10m | 2.47*1.17*2.43 | 0.9 | 2730 |
| GTJZD-12 | 2.26*1.13 | 230kg | 12m | 2.47*1.17*2.55 | 0.9 | 2460 |
| GTJZD-12 | 2.26*1.13 | 320kg | 12m | 2.47*1.17*2.55 | 0.9 | 2860 |
| Hydraulic drive | ||||||
| Model | Table size(m) |
Load capacity |
Platform height | Overall size(m) | Extension of platform(m) | Overall weight(kg) |
| GTJZ-6A | 2.26*0.81 | 380kg | 6m | 2.48*0.81*2.18 | 0.9 | 1880 |
| GTJZ-6A | 2.26*1.13 | 550kg | 8m | 2.475*1.15*2.158 | 0.9 | 2060 |
| GTJZ-8A | 2.26*0.81 | 230kg | 8m | 2.48*0.85*1.85 | 0.9 | 2030 |
| GTJZ-8A | 2.26*1.13 | 450 kg | 8m | 2.48*1.19*1.82 | 0.9 | 2190 |
| GTJZ-10A | 2.26*1.13 | 320kg | 10m | 2.495*1.187*1.92 | 0.9 | 2500 |
| GTJZD-12 | 2.26*1.13 | 320kg | 11.8m | 2.475*1.15*2.542 | 0.9 | 2960 |
| GTJZ-14A | 2.64*1.13 | 227kg | 13.8m | 2.84*1.40*2.60 | 0.9 | 3390 |
 |

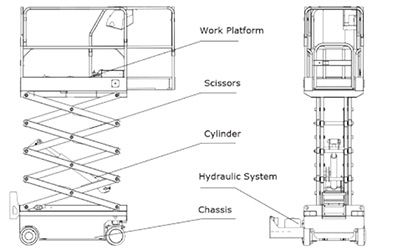

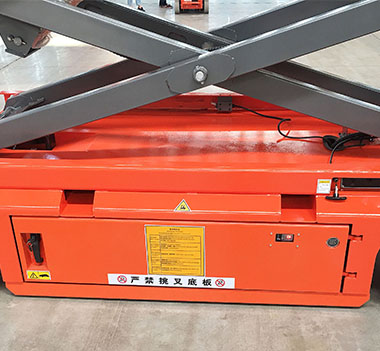

Chassis Q345 Manganese steel Robot welding base, to ensure the safety and stability of the equipment, long service life. |
 |

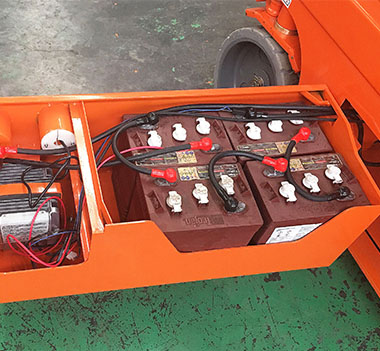

Battery The battery is imported from the United States Trojan battery, fully ensure the high efficiency of the work, long use time |
 |

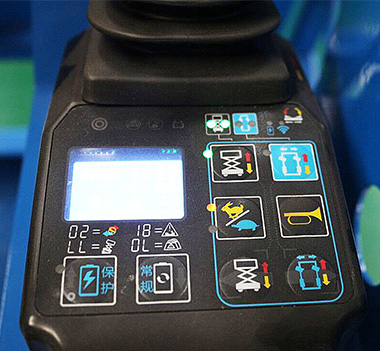

Intelligent control system The humanized operation interface is equipped with icons to indicate the requirements of each action, which is simple and easy to understand, will not cause misoperation, and enhances safety. |
 |

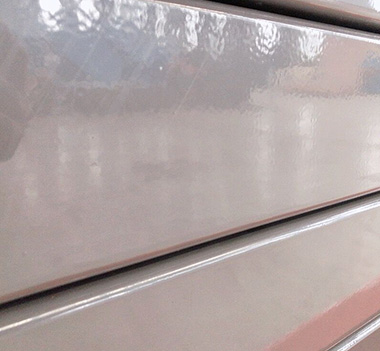

Support structure Q345 manganese steel structure, the surface of the large - scale sand blasting shot derusting. |
 |

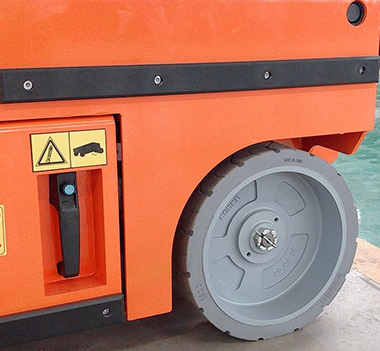

Tire Self-propelled scissor lift platform adopts non-trace polyurethane tire, can be used in advanced places, no damage to the ground, skid resistance and wear resistance |
 |

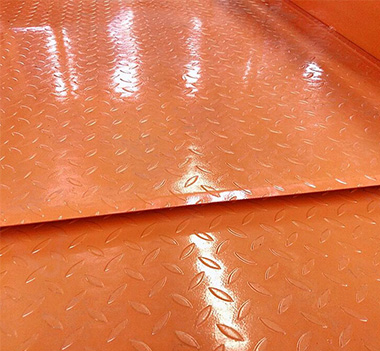

Platform 0.9M extension table, can expand the scope of work, improve work efficiency. Adopt anti-skid pattern design, more safety |
scissor lift (6m,8m,10m,12m,14m)
