Products

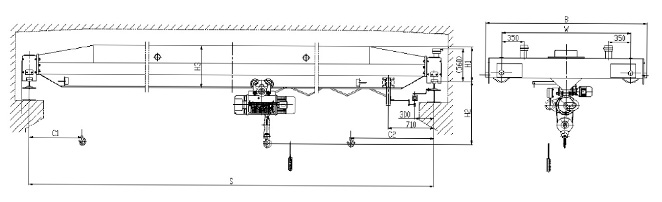

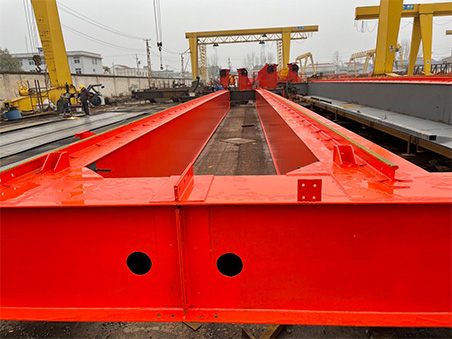

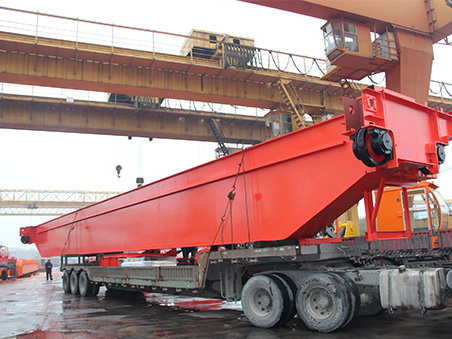

Main girder

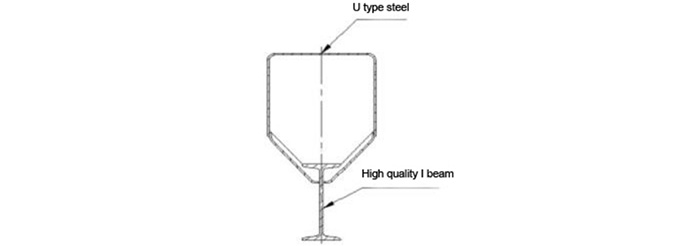

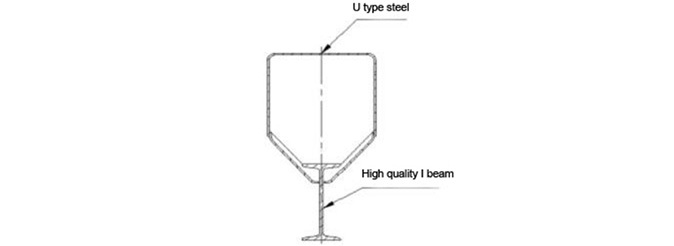

1.Single girder, made by the high quality I steel and high quality U-shapped slot into composition

2.Material Q235B or Q345B ( similar as Fe37 or Fe52).

3.Main girders connected with bolts

4.Arched main beam according to request, the arch degree F should be (1/1000~1.4/1000) S, max. Arch degree be in the scope of middle span S/10.

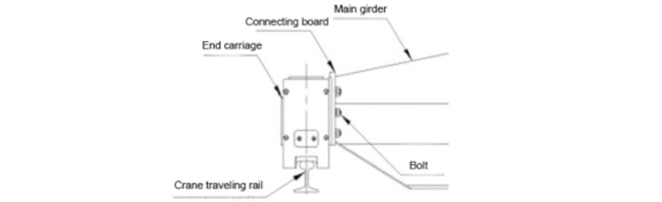

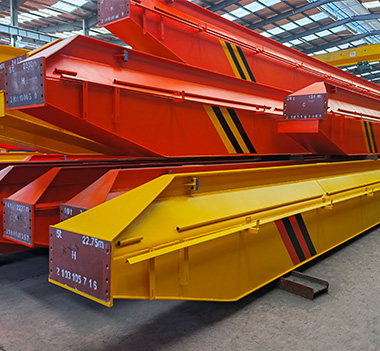

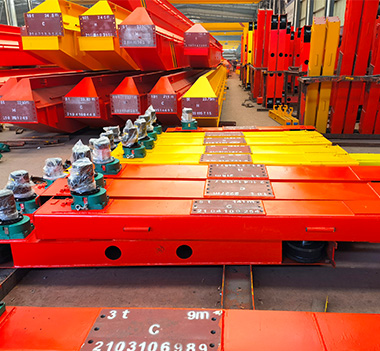

End girder

1.Box structure girder welded by U-type groove and steel plate group or only steel plates, with features of light structure, good rigidity, appearance and welding technology.

2.use LD single girder special wheel, light and strong versatility.

3.Buffers settled at the ends of end girder

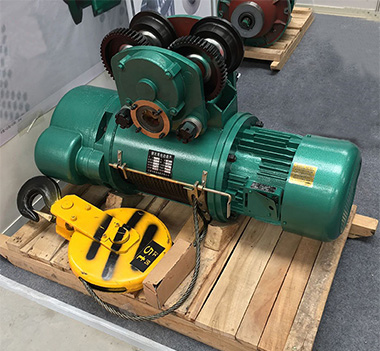

Electric hoist

1.Lifting Mechanism - CD or MD wire rope hoist Crane Traveling Mechanism

2.Drive separately, composed of traveling motor, traveling reducer, wheel group, etc.

Electrical Equipment

1.Trolley conductor or angle steel conductor power supply

2..Hoist and crane Separately control, move separately or together

3.Flat cable or special cable power supply for electric hoist

4.Galvanize slide and cable trolley, smoothly moving, appearance is

aesthetics

5.Electrical non-contact speed regulation control module

6.Operation, hoisting, the point start are very smoothly

7.Power leading has both methods of current collector and flexible cable

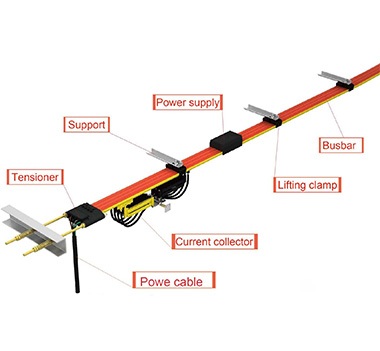

Bus bar/Slide wire

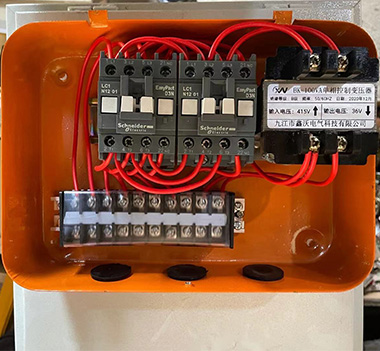

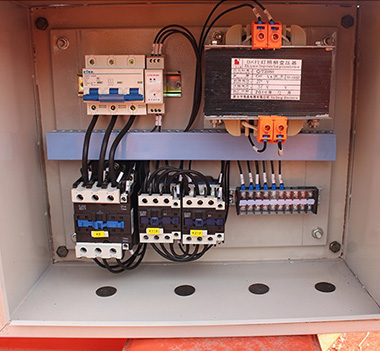

Electric cabinet

Cable

Safety Device

1.Outdoor cranes are equipped with lifting mechanism,

2. electrical control box and rainproof devices

3. Overloading alarm, two grade of top dashing proof protection

4. Crane buffer

5.Anti-collision, sound and light alarm devices

6.Circuit self-check protector

7.Flow phase lack protection

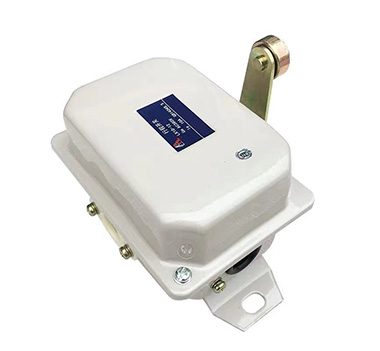

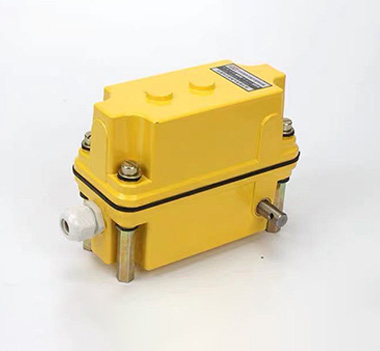

Lifting limit switch

Electrical protection

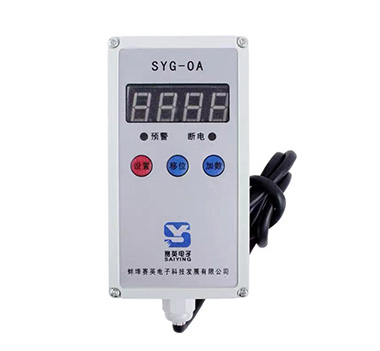

Weight overload limiter

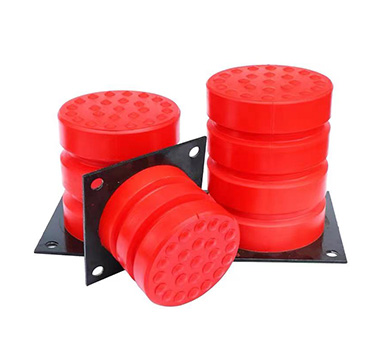

Buffer

Traveling limit switch

Operation

1.Ground control and cabin control

2.The cabin has open style, close style,can fixed on left or right

3.The open direction include end open,side open or top open

4.The cabin includes special small room for single-girder and capsule cabin

5.Ground control has handle and remote control, do not need to set up special driver

6.Users can choose as you need

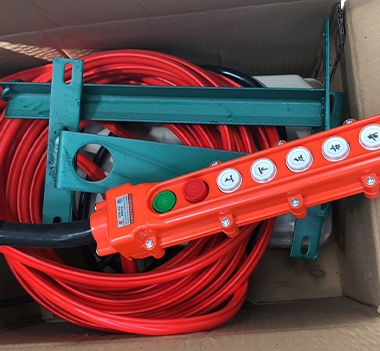

Pendant control

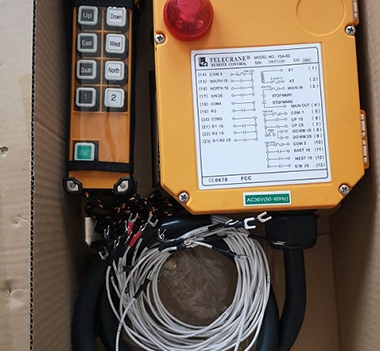

Remote control

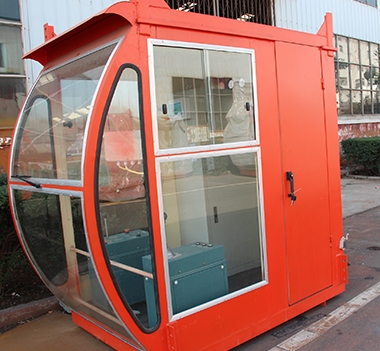

Cabin control
