1.SWL up to 1,000kg
2.Out reach up to 8m (<500kg)
3.Max slewing angle of pillar-mounted jibs is270
4.Cross travel by hand and slewing by hand
5.Chemical anchor bolts are used to fit the pillar to existing concrete floors, conveniently and quickly
6.KJB slewing jibs can be mounted on wall or pillar in workplace,and do not take up
any floor space
1.KBK Type Pillar Jib Crane is a small and medium-speed lifting equipment developed recently . It has characteristics of unique structure ,
2.safe and reliable operation , high , efficiency , energy-saving , effort-saving , and flexibility .It is superior in the cases of short distance , concentrated lifting . It is widely used at various sites for various trades .
3.rotation floor mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and
4.electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel
5.crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.
SWL up to 1,000kg
Out reach up to 8m (<500kg)
Max slewing angle of pillar-mounted jibs :270 degree
Cross travel by hand and slewing by hand
Our company produce Jib Crane mainly with the lifting capacity of 0.5-10t, span 3-12m, the lifting height of 3-9m, and the light (A3/A4) working duty, also can design and manufacture non-standard series hoist according to your demands.
| Load (kg) | Outreach (m) | Rotation Angle | |||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | degree | degree | |
| 125 | 270 | 180 | |||||||
| 250 | |||||||||
| 500 | |||||||||
| 1000 | |||||||||
|

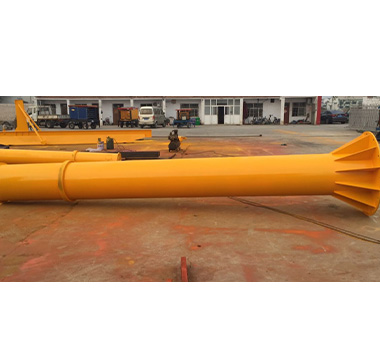

1.Column
The thickened stainless steel plate is sprayed with anti-rust paint, the appearance is smooth, and the lower seat of the column is fixed by anchor bolts |
 |
|

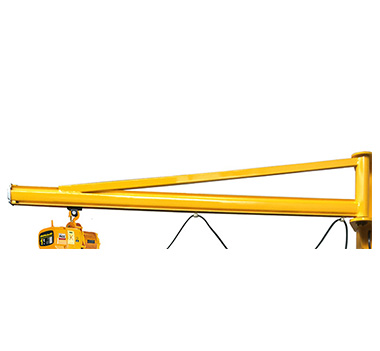

2.Arm
The cantilever arm adopts a hollow steel structure, with light weight, high strength, good rigidity and easy operation. The built-in walking adopts the engineering plastic rolling of the rolling bearing shaft, the friction force is small, and the rotation is brisk |
 |
|

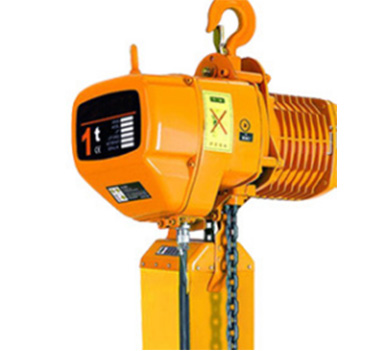

3.hoist
The chain hoist is very light and easy to pull,Single lifting speed and double lifting speed for choose |
 |
|
4.electrical appliances
intelligent-Control Schneider brand, limit switch, overload protection, safety usage and control |
 |
|

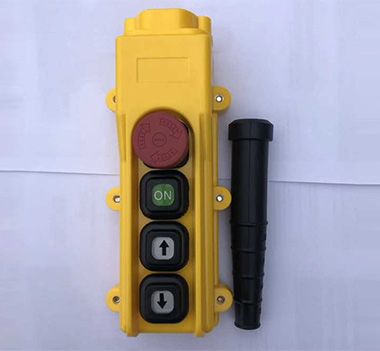

5.Wired handle
The operation is safe, and the situation can be controlled in time |
 |
Single mast (4m,6m,8m,10m)
