1. The standard travelling speed of crane is 2-20m/min ( frequency conversion )
2. There are many optional speed levels and frequency control lifting except the standard speed .
3. The small wheel pressure and small volume can reduce the investment in the preliminary works such as the factory building.
4. Using high-quality components can reduce failure rate and maintenance costs.
5. Low consumption of total power can reduce the costs, it had remarkable energy-saving effect.
6. Standardize the whole crane configuration to make the whole machine more stable.
7. Real-time security monitoring while crane running.
8. Control methods : ground control , remote control , cab control and either of the two combination.

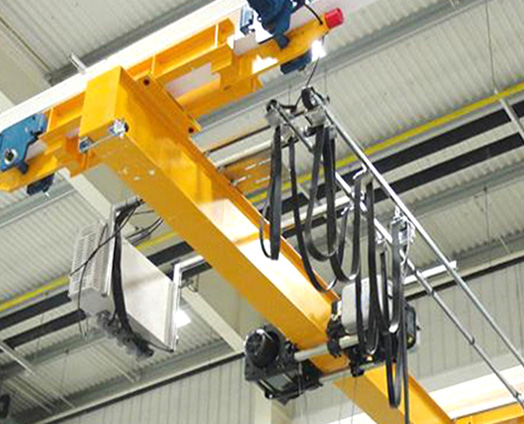

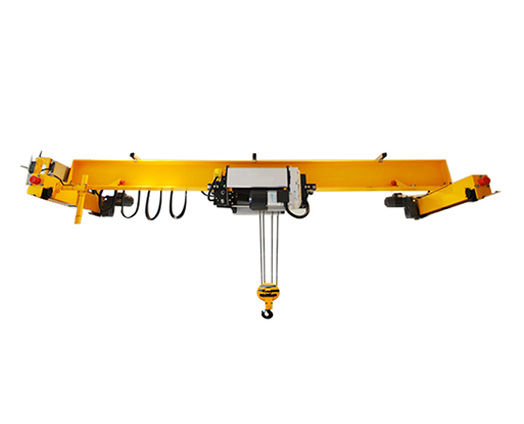

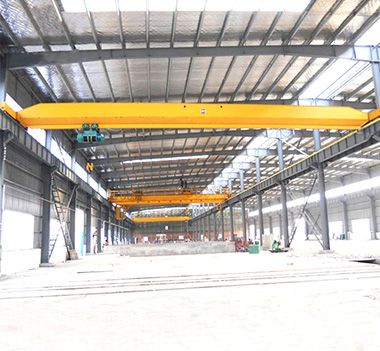

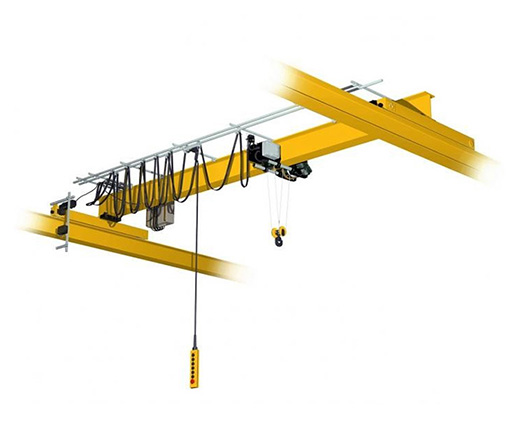

Our company supply the European single girder overhead crane with lifting capacity: 1~20t, span:7.5~28.5m, lifting height 1~30m, low work class A3,A4. We also design and manufacture the nonstandard crane according users’ demanding.
European single girder overhead crane is used in ambient temperature of -25℃～+40℃，humidity≤85%，elevation under 1000 m; the average temperature does not exceed +35℃ within 24 hours, when the average temperature exceeds +25℃, relative humidity allowed temporarily up to 100% within 24 hours, in the temperature of +40℃, relative humidity not more than 50%.suitable power supply is 3-ph, 380V, 50HZ (can change as user demand).
Product Type:EURO type
Lifting Capacity: 1~32t
Span: 7.5~28.5m
Lifting Height: According your demands
Working Class: A3,A4
Ambient Temperature: -20~40℃
Main Structure and Feature
It mainly has three parts: mechanism part, (metal structure and crane travelling parts), electric
hoist(lifting mechanism), electrical equipments (safe protection, operation).
 |
 |
 |
|

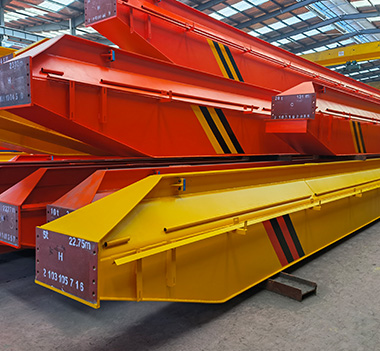

Main Girder Structure: Welding structure of steel plate and I-steel Technology: One-off forming U shaped groove. |

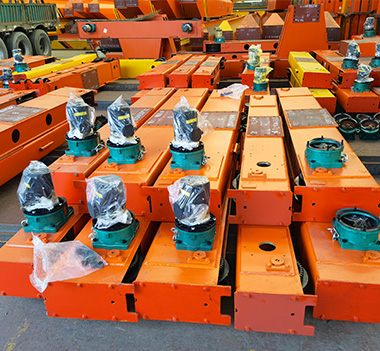

End Girder The end girder is connected with the main girder by dolts and nuts for easy transportation and installation. |

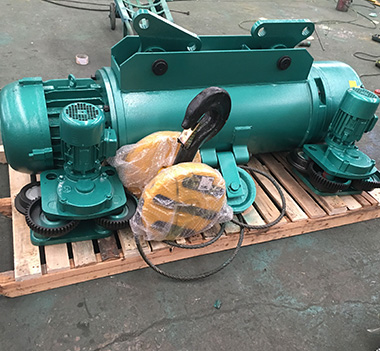

Electric Hoist Model: CD, MD Capacity: 0.25-32t Lifting height: >3m Usage: Workshop, mines, harbor etc. |
 |
 |
 |
|

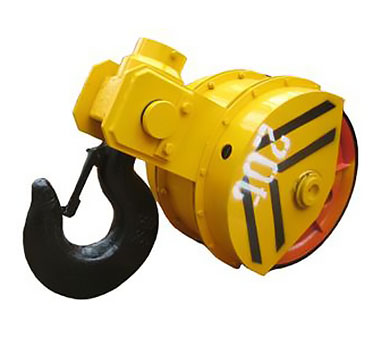

Hook Capacity: 1-450t Type: Single hook, double hook Material: forging Usage: Lifting various objects |

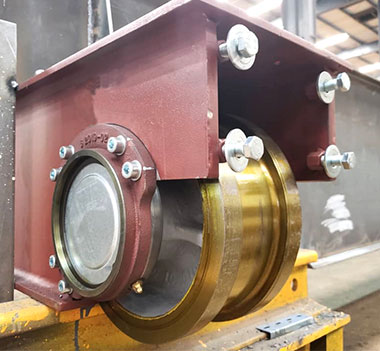

Wheels Process: Casting, rough machining, QT, finish machining Material: forging Usage: Crane Travelling |

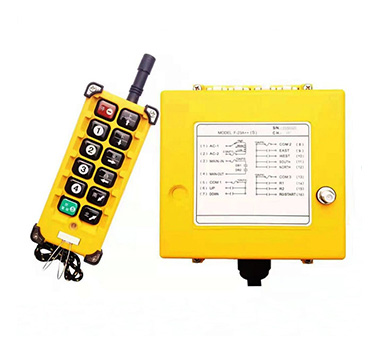

Wireless Remote Control Model: F21 F23 F24 Speed: Single speed, double speed. VFD control Usage: For overhead crane, gantry crane, electric hoist etc. |

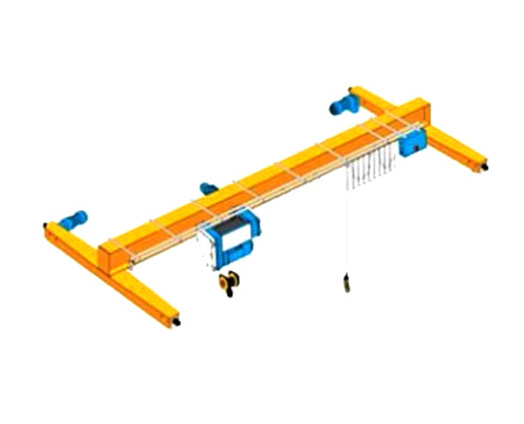

| LD Single girder overhead crane Model:LD Capacity:1~32 tons Span:Max 31.5 m Working class:A3 Speed:single speed,double speed Control:pendant control,remote control Power supply:380V 50HZ 3 phase |
 |
 |

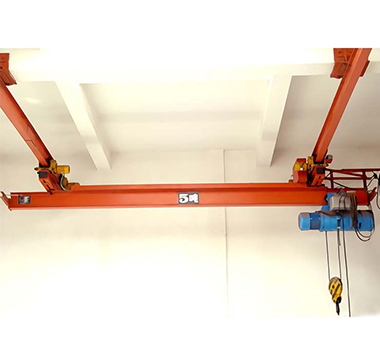

LX Single Girder Overhead Crane Model:LX Capacity:1-2 tons Hoist height:1-30 m Span:Max 31.5 m Working class:A3 Speed:single speed,double speed Control:pendant control,remote control Power supply:380V 50HZ 3 phase |

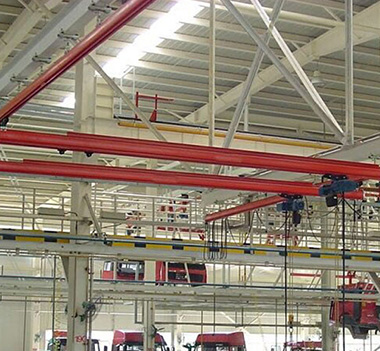

| KBK overhead crane Model:Light crane Capacity:1~3 tons Span:Max 9m Working class:A3 Speed:single speed,double speed Control:pendant control,remote control Power supply:380V 50HZ 3 phase |
 |
 |
LB Single Girder overhead crane Model:LB Capacity:1~20 tons Span:Max 31.5 m Hoist height:1~30 m Working class:A3 Speed:single speed,double speed Control:pendant control,remote control Power supply:380V 50HZ 3 phase |
