The jib crane can be used freely in three dimensional space
Special structure, safe & reliable, high efficiency, energy and time saving
Light body weight, moving flexible, large operating space
Cover an small area, easy operation and maintenance, economic durable, rotary flexible
(1) Widely used in workshop, storage, yard and some other fixed place
(2) Especially used for lifting in short-distance or serried place
(3)Lifting capacity: 0.5t-10t，lifting height:3m-9m
Load capacity:up to 10 tons
Span:up to 12m
Cross-travel speed:up to 20m/min
Lifting speed:up to 8m/min
Non-standard specifications on request
Main Classification

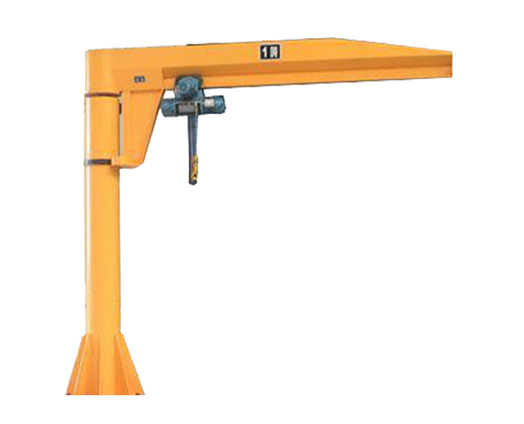

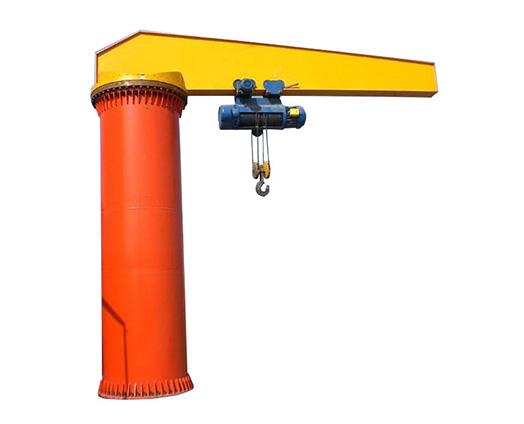

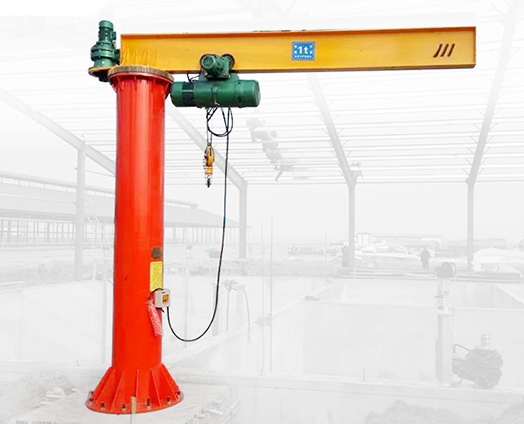

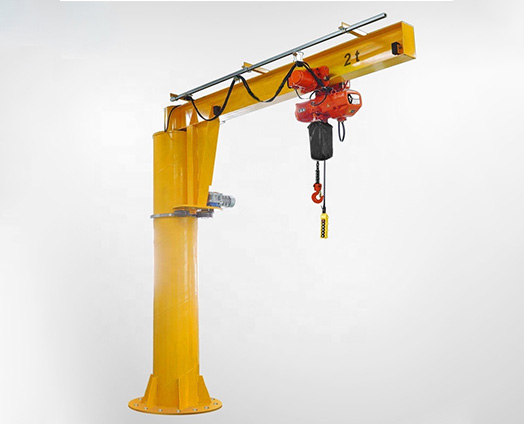

(1)BZ Type Pillar Jib Crane
Lifting capacity: 0.5t-10t，lifting height:1m-10m, Working class:light (A3)
The pillar type boom suspension has a small structure and it durable. The hoisting, running and slewing are all electric, compact structure, suitable for low headroom, electric swivel crane with 360 ° slewing angle.
(2)BX Type Mural Jib Crane
lifting capacity 0.25t-1t, lifting height 1m-10m,Working class A3
The wall swing arm crane has a small size and is durable. The hoisting, running and slowing are all electric, compact structure, suitable for low headroom,180 ° electric swivel crane.
(3)BB Type Wall-travelling Jib Crane
lifting capacity 0.5t-16t, lifting height 6m-30m,Working class A3
The wall swing arm crane has a small size and is durable. The hoisting, running and slewing are all electric, compact structure, suitable for low headroom,180° ~270° electric swing arm crane.

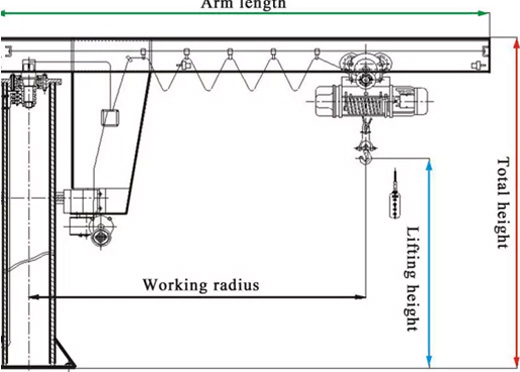

Product Details: jib crane mainly includes column, arm, electric hoist and electrical appliances.
|
Column
The thickened stainless steel plate is sprayed with anti-rust paint, the appearance is smooth, and the lower seat of the column is fixed by anchor bolts |
1 |
|
Arm
main girder, made by the high quality I steel and high quality U-shapped slot into composition |
2 |
|
Hoist
Model CD1,MD1 wire rope electric hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge , gantry and arm cranes. It is widely used in factories, mines, harbors,warehouse |
3 |
|
Electrical Appliances
intelligent-Control Schneider brand, limit switch, overload protection, safety usage and control |
4 |
High Accuracy Measurement
