(1)Easy to operate, good stability, no impact, no shaking, high safety performance.
(2)High-quality aluminum alloy structure, high safety and good stability.
(3)Sandblasting treatment on the surface of the parts reaches Sa2.5 level to ensure high corrosion resistance.
(4)All shaft pins are treated with wear-resistance and electroplating, and most of the exposed parts are treated with galvanizing or plating to effectively resist corrosion.
(1) Emergency descent system.
(2) Leveling Device.
(3) Support Leg.
(4) Auxiliary walk.
(5) Remote control.
Product name: Aluminium alloy lift platform
Model: GTWY
Carrying capacity: 100kg~300kg
Lifting height: 4m~18m
Operation: Move by hand,up and down by electric.
| Type | Model | Platform height | Load capacity | Platform size | Weight | Overall size |
| Single mast | GTWY-4-1 | 4m | 100kg | 0.6*0.6m | 280kg | 1.3*0.8*1.98m |
| GTWY-6-1 | 6m | 150kg | 0.65*0.65m | 360kg | 1.42*0.78*1.97m | |
| GTWY-8-1 | 8m | 130kg | 0.65*0.65m | 380kg | 1.42*0.78*1.97m | |
| GTWY-10-1 | 10m | 130kg | 0.65*0.65m | 420kg | 1.42*0.78*1.97 | |
| Double mast | GTWY-6-2 | 6m | 300kg | 1.2*0.63m | 510kg | 1.55*0.85*2.0m |
| GTWY-8-2 | 8m | 300kg | 1.5*0.63m | 550kg | 1.55*0.85*2.0m | |
| GTWY-10-2 | 10m | 250kg | 1.5*0.63m | 690kg | 1.84*0.85*2.0m | |
| GTWY-12-2 | 12m | 200kg | 1.5*0.63m | 730kg | 1.84*0.85*2.0m | |
| GTWY-14-2 | 14m | 150kg | 1.5*0.63m | 790kg | 1.95*1.05*2.39m | |
| Three mast | GTWY-12-3 | 12m | 200kg | 1.57*0.9m | 1050kg | 1.9*1.1*1.98m |
| GTWY-14-3 | 14m | 200kg | 1.57*0.9m | 1120kg | 1.9*1.2*2.3m | |
| GTWY-16-3 | 16m | 200kg | 1.57*0.9m | 1200kg | 2.0*1.2*2.7m | |
| Four mast | GTWY-12-4 | 12m | 200kg | 1.57*0.9m | 1050kg | 1.9*1.2*2.0m |
| GTWY-14-4 | 14m | 200kg | 1.57*0.9m | 1150kg | 1.9*1.2*2.3m | |
| GTWY-16-4 | 16m | 200kg | 1.57*0.9m | 1250kg | 1.9*1.2*2.7m | |
| GTWY-18-4 | 18m | 200kg | 1.57*0.9m | 1480kg | 2.0*1.4*2.96m |
 |

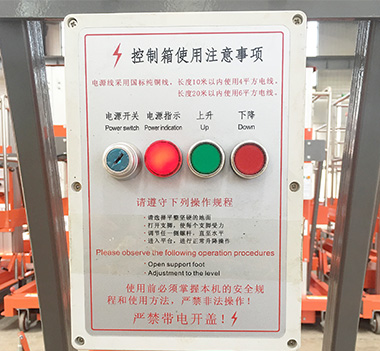

Control box The power line of the control box adopts 100% copper wire,4 square wires within the height of 10m and 6 square wires within the height of 20m |
 |

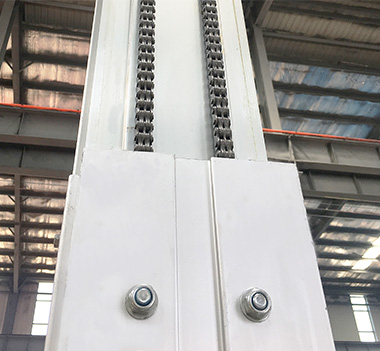

Telescopic rod The material of the boom is Q235 rectangular tube, to make the machine more stable. |
 |

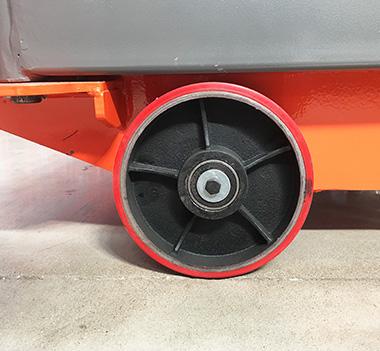

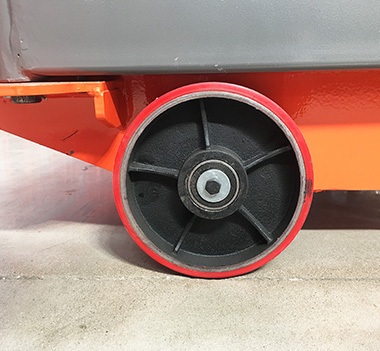

Wheel GTWY Aluminum alloy lifting platform adopts non-trace polyurethane tire, can be used in important places, no damage to the ground, skid resistance and wear resistance. |
 |

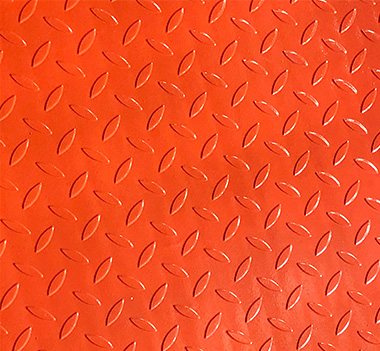

Non-slip mesa Lifting platform table adopts anti-slip pattern design, which can make staff safer and improve work efficiency. |
 |

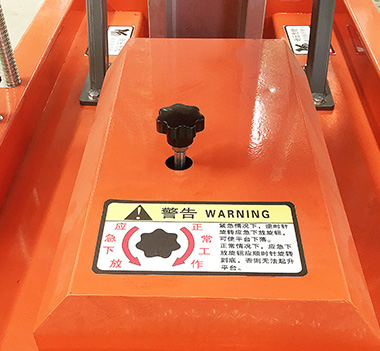

Emergency Descent In the event of power failure,this bracket can be rotated to allow the machine to descend form a high altitude. |

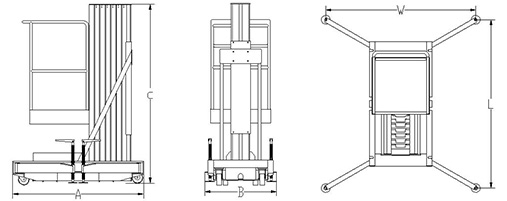

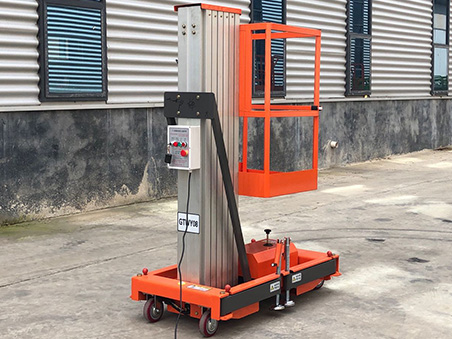

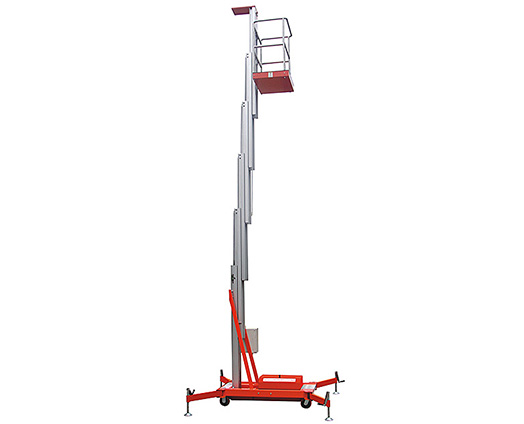

Single mast (4m,6m,8m,10m)

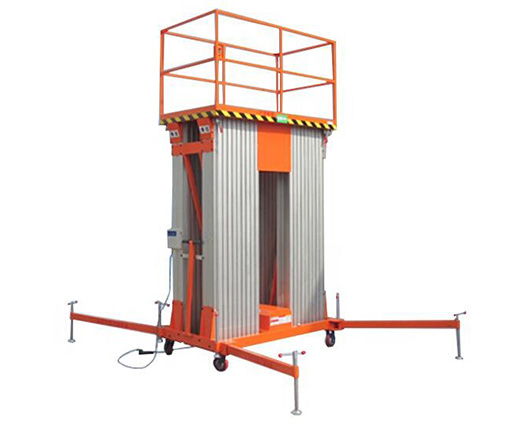

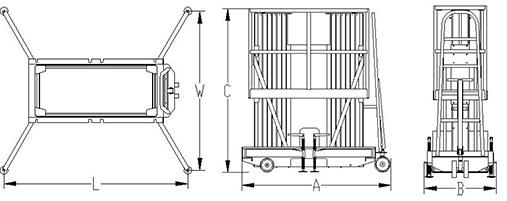

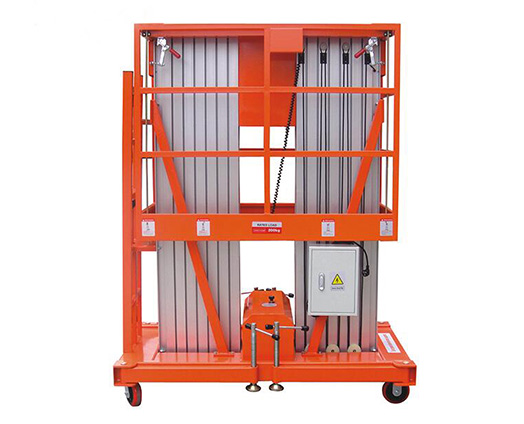

Double mast(6m,8m,10m,12m,14m)

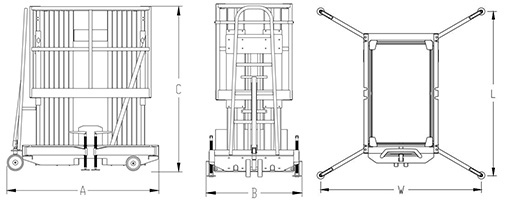

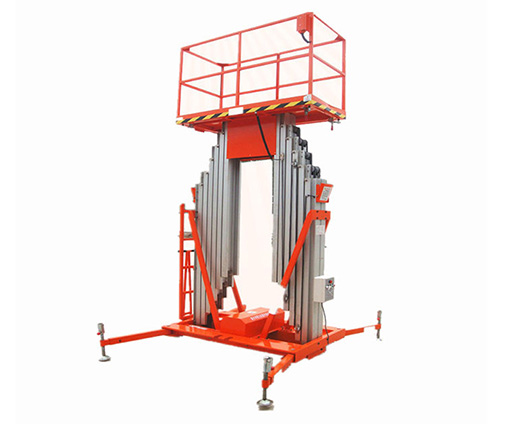

Three mast(12m,14m,16m)
