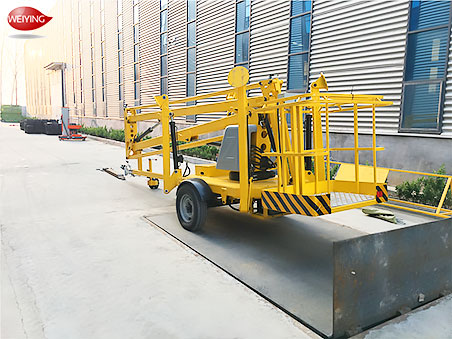

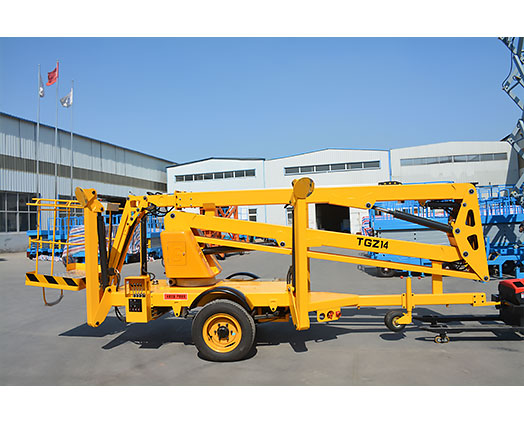

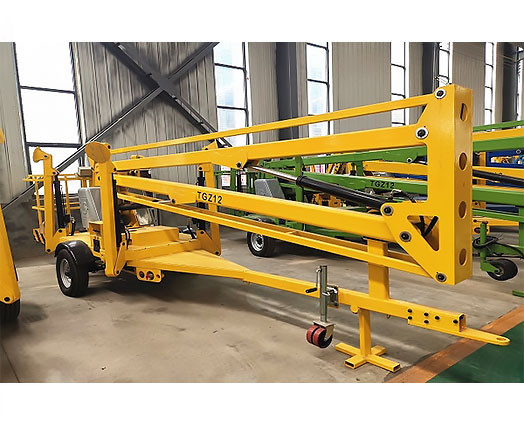

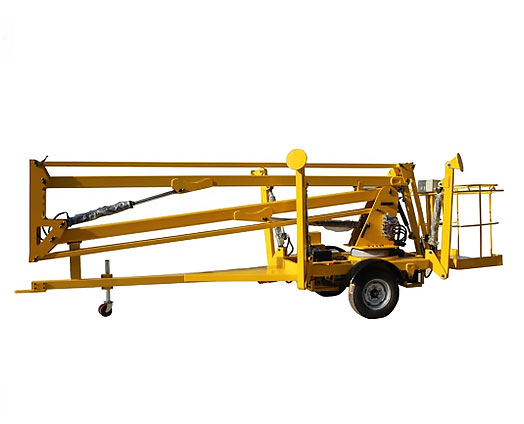

The trailer boom lift has a compact structure, using a new type of high-quality steel, high strength, light weight, direct access to AC power to start, set up fast, automatic hydraulic support feet, can quickly set up safe and simple operation. The working table can be raised and the horizontal extension span is large, and the working area is increased; and the platform can be rotated. Easy to cross the obstacles and reach the working position, is the ideal equipment for climbing. The transportation is convenient, direct fast trailer, trailer speed up to 90km/h.
(1) 4 automatic hydraulic leg ,stable and easy operate.
(2) Double control system , ground control + platform control.
(3) 360 degree rotation , easy for operator working.
(4) Power source diesel engine or AC , DC(can be customized).
(5) Large working radius , easy to overcome obstacles.
Our company supply the Trailer boom lift with lifting height : 8-20m , working radius : 4.5~12m.
(1) Maximum platform height: 8 meter to 20 meter.
(2) Maximum working height: 10 meter to 22 meter.
(3) Power Source: move by tow , raise and down by diesel engine / AC/DC power.
(4) Load capacity: 200 KG.
(5) Platform size: 1200x800x1100 mm.
(6) Color: orange, green.
(7) Trailer speed: 90km/h.
(8) Advantage of trailer mounted fold arm lift platform: compact structure, high strength, light weight, direct access to AC power to start, set up fast, automatic hydraulic support feet.
|
Model |
Table size (mm) |
Overall size (mm) |
Max. lifting height (m) |
Load (kg) |

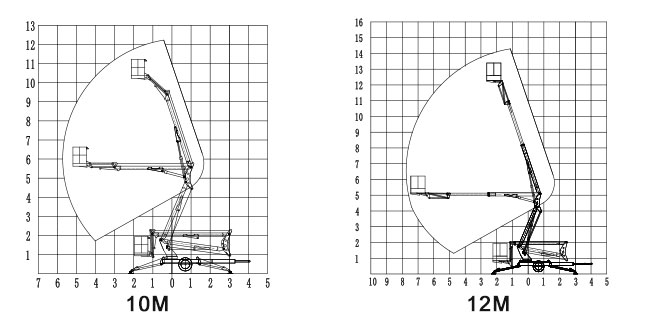

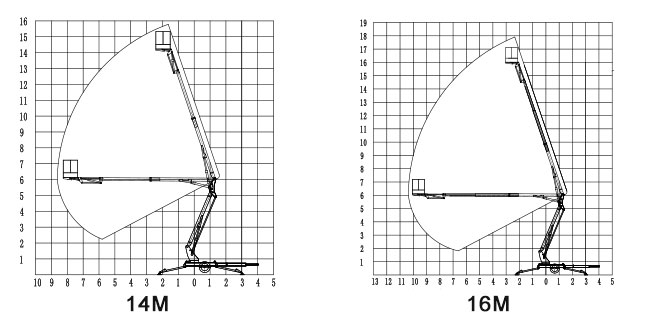

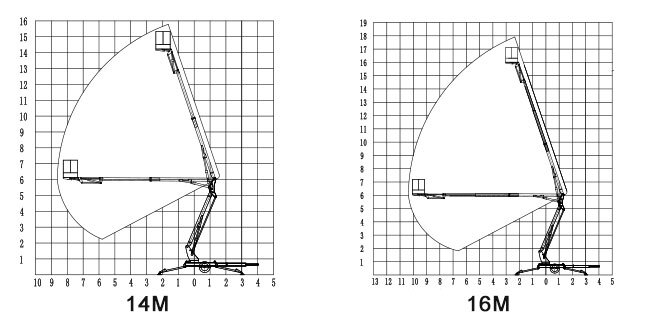

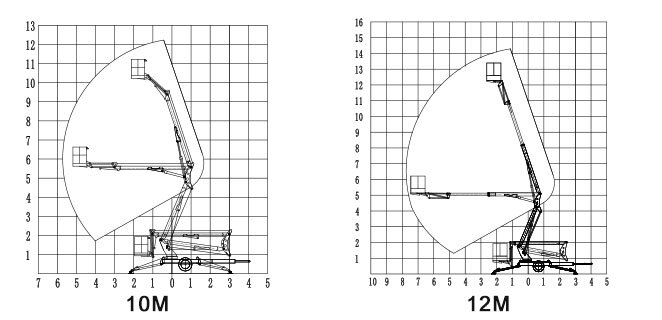

Working radius (m) |
Total weight (kg) |
|
TGZ-8 |
1200*800 |
5200*1585*1900 |
8 |
200 |
4.5 |
1500 |
|
TGZ-10 |
1200*800 |
5400*1665*1900 |
10 |
200 |
5.7 |
1700 |
|
TGZ-12 |
1200*800 |
6400*1665*1900 |
12 |
200 |
6.4 |
1900 |
|

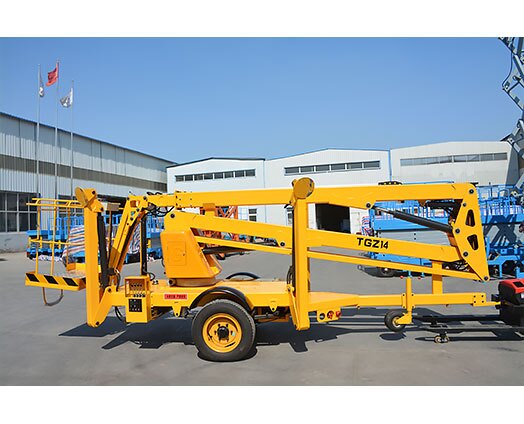

TGZ-14 |
1200*800 |
6200*1730*2100 |
14 |
200 |
8.5 |
2350 |
|

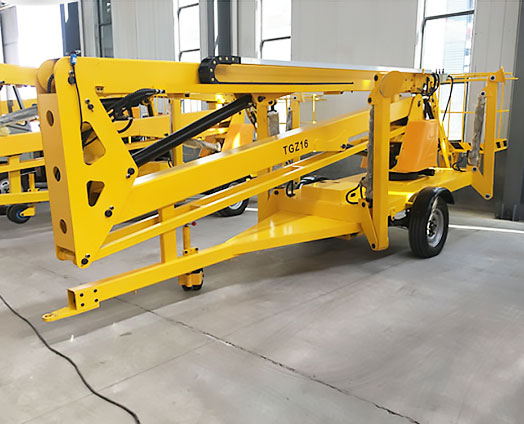

TGZ-16 |
1200*800 |
7000*1730*2200 |
16 |
200 |
9.5 |
2600 |
|
TGZ-18 |
1200*800 |
7.1*1.85*2.26 |
18 |
200 |
10 |
4300 |
|
TGZ-20 |
1200*800 |
7.7*1.85*2.26 |
20 |
200 |
12 |
4450 |
|
Details |
||||
 |

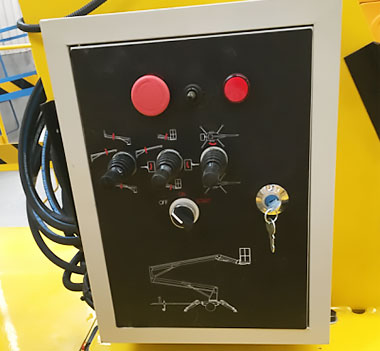

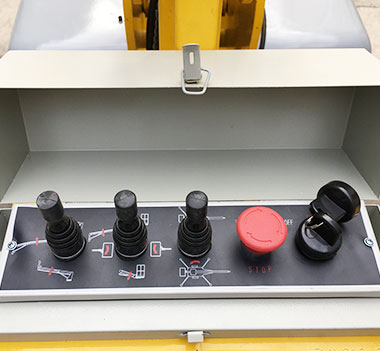

Ground control system Easy to identify operation panel , advanced integrated control system , simple and flexible operation. |
|||
 |
Platform control system The platform controller is equipped with a protective cover, which is waterproof and dustproof. |
|||
 |

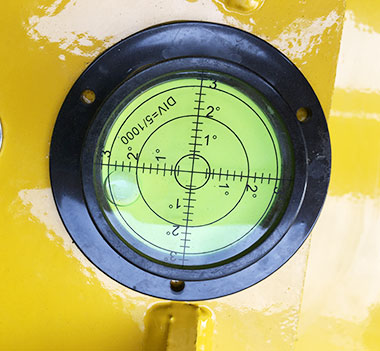

Spirit level Indicate whether the lift is in a horizontal state, making high-altitude operations safer. |
|||
 |

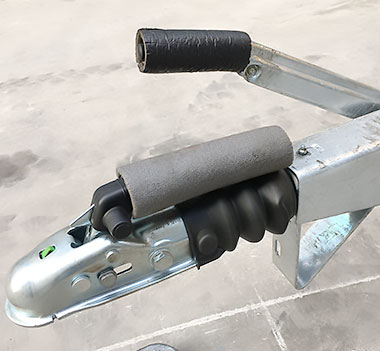

Tractor International standard traction bar for automobiles, Italy brand. |
|||
 |

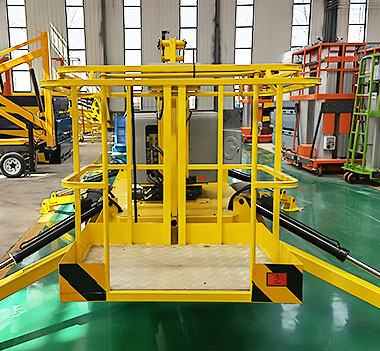

Working platform 360° rotating anti-skid table, large working area, easy to cross obstacles to reach the working position. |
|||
 |

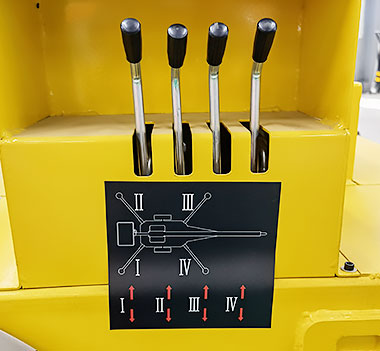

Outrigger Operating lever Control lever with indication for easy operation of outriggers . |
|||
 |

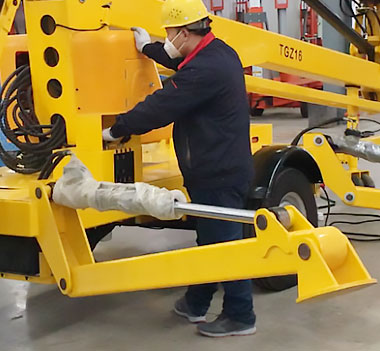

Auto hydraulic outrigger 4 hydraulic outriggers, automatic leveling of the lift, ensure safe operation. |
|||
 |

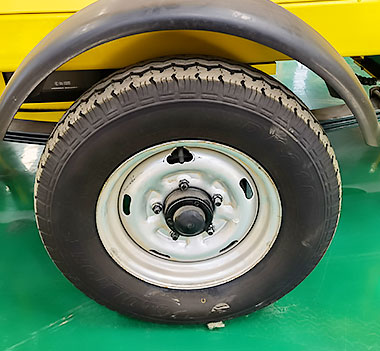

Pneumatic tire Pneumatic tires have a long wear-resistant life and are suitable for multi-site operations. |
|||
 |

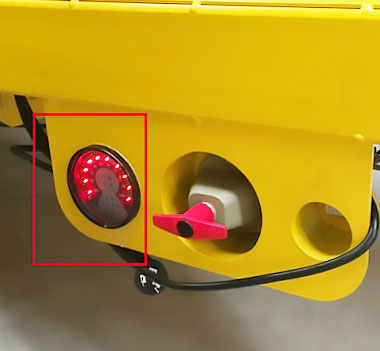

Power display (Only for battery power) Easy to charge in time |
|||
 |

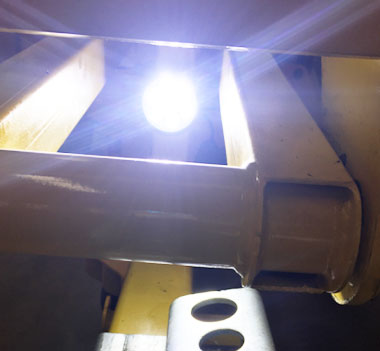

Working light (Optional parts) Make night work more convenient. |
|||
