Benefits At A Glance

Main Features

Strong installation adaptability, can be installed in harsh environment and general explosion-proof places.

The products are widely used. Suitable for warehouse, shopping mall, factory, stairwell and other places of goods delivery.

Full custom products, can be customized according to customer

requirements of any height and table size.

Large carrying capacity, can reach 1 ton to 100 tons.

There is a safety barrier device under the table top, when the table top descends and encounters obstacles, it stops descending to ensure safety.

Product Configuration

(1)Heavy weight sensor.(Optional configuration)

(2)2 pcs remote control.

(3)Guardrail.(Optional configuration)

(4)Explosion-proof motor and explosion-proof tubing.(Optional configuration).

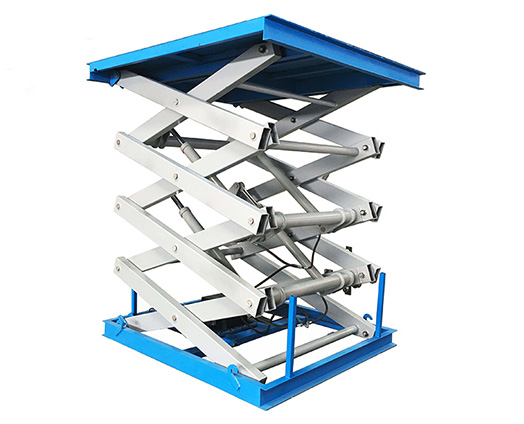

(5)Single scissors structure, double scissors structure, four scissors structure.(Optional configuration)

(6)Electric control box (control box).

Technical Data

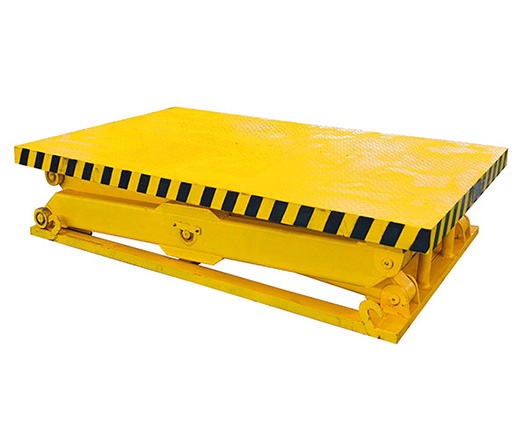

Product name:Fixed scissor lifting platform

Model:SJY

Carrying capacity : Can be customized

Lifting height : Can be customized

Color:Can be customized

Product Name Fixed hydraulic scissors lifting platform
Maximum platform height 300-1200mm
Platform size 2000mm*2000m
Load 250kg
Mesa material 60 * 40 * 3.25 rectangular tube
Support bar 10 # C steel
Base 7# Angle iron
Oil cylinder 6050Oil cylinder*2PCS
Power unit 415v 2.2kw 2.1CC
Oli box 8L
Guardrail 25 Galvanized square pipe

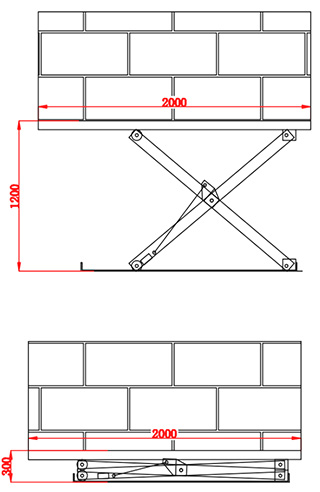

The Structure Sketch

  • SJY (2m)

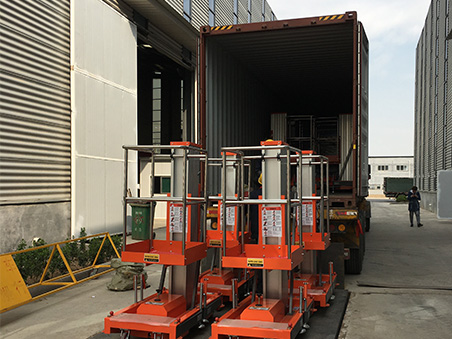

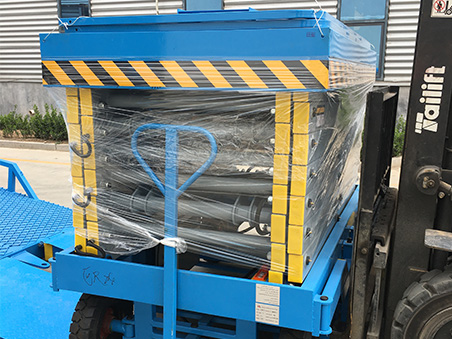

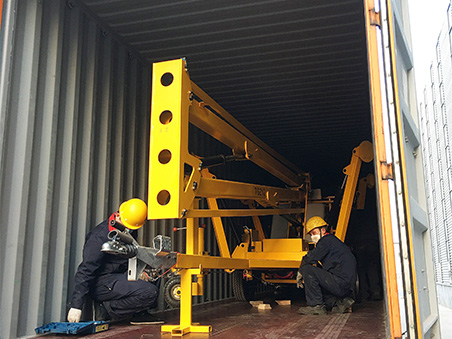

Packing and Transportation

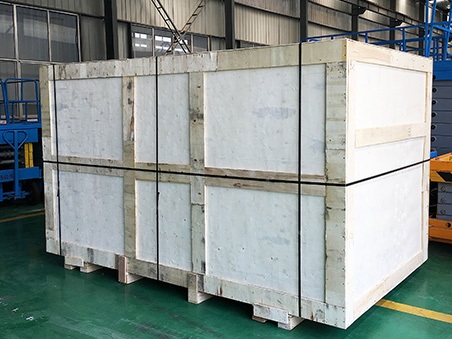

  • Packed in wooden cases

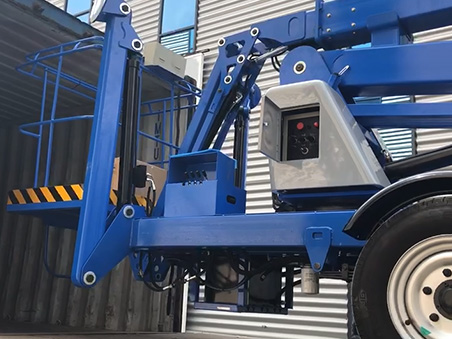

  • TGZ trailer fold arm lift platform


  • Send to Sweden

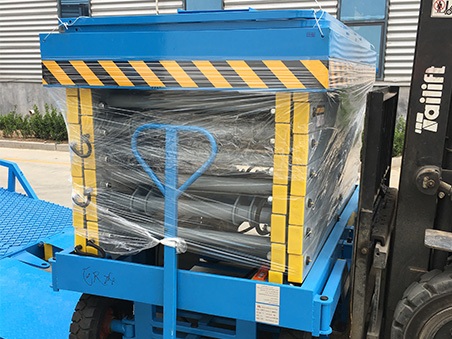

  • SJY Mobile scissor lift platform


  • GTWY Aluminium alloy lift platform

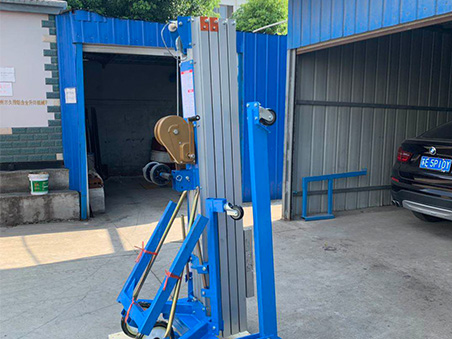

  • Manual Aluminium alloy lift

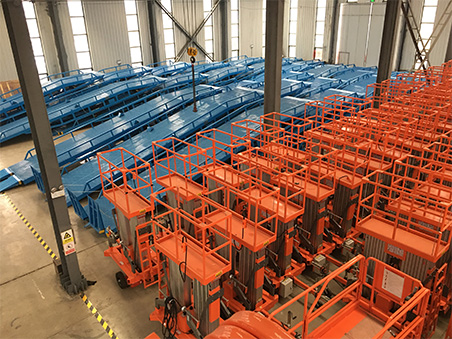

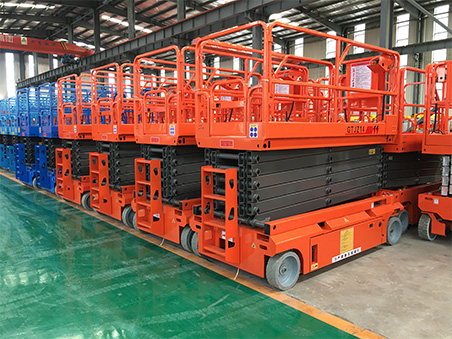

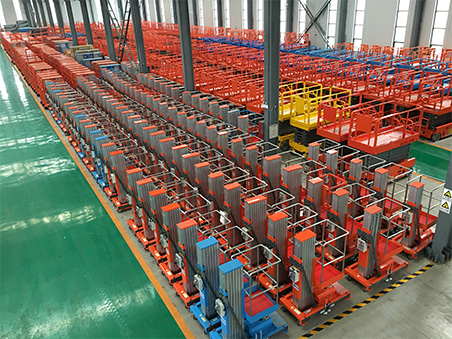

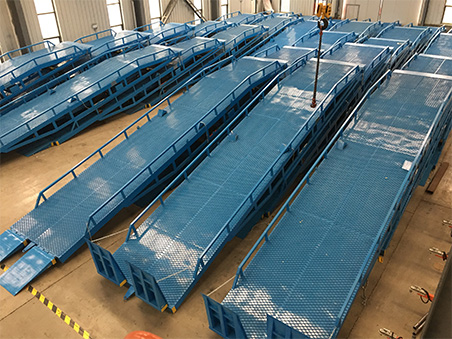

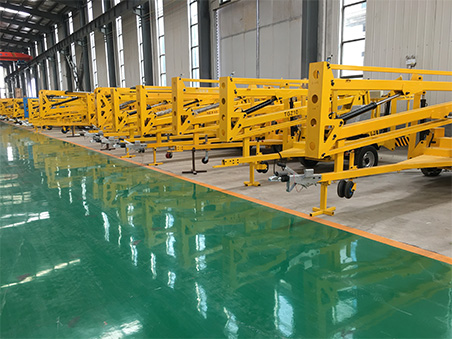

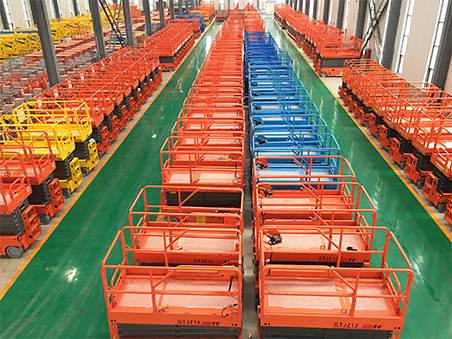

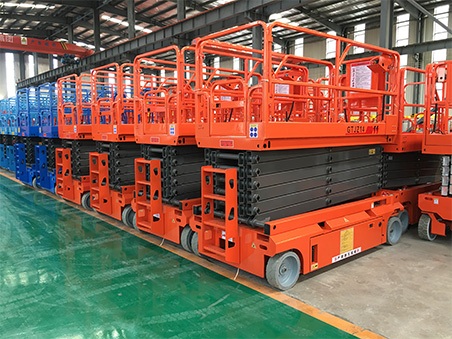

Factory Show
