1. What is an end beam?

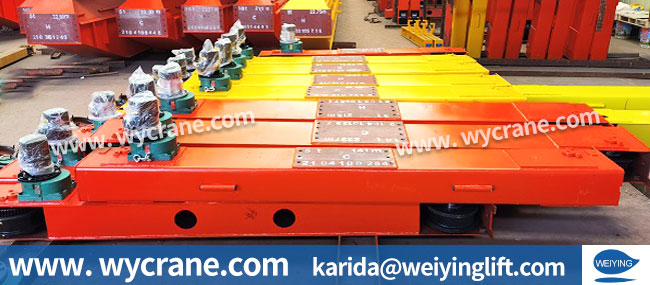

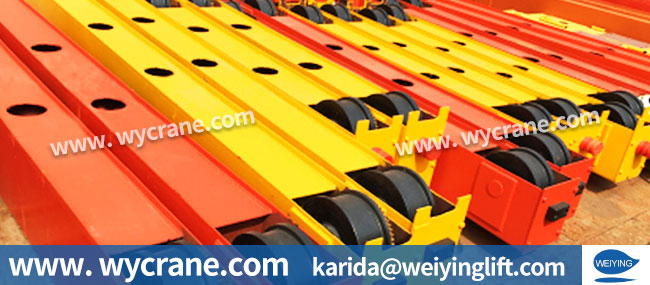

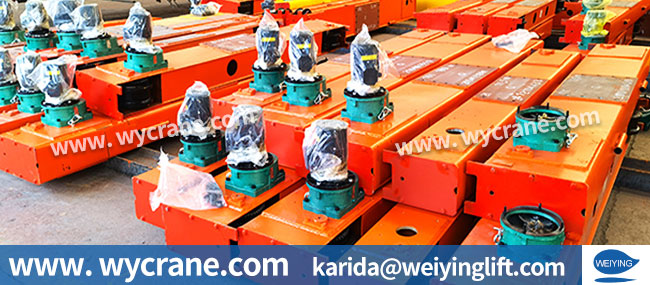

The end beam is an important part of a bridge crane. It’s located at both ends of the crane and is a structural component that connects the wheels and supports the main beam of the crane. To put it simply, the end beam is like the “feet” of the crane. It runs on the rails through the wheels, enabling the crane to move within the working area. In the field of cranes, the box – type end beam is more widely used.

2.Advantages and Disadvantages of Box – type End Beams
Advantages
Exceptional Strength and Stiffness：The box – type end beam is fabricated by precisely welding steel plates into a box – shaped structure, establishing a robust mechanical system. It can effortlessly withstand substantial pressure and bending moments.
Outstanding Overall Stability：Thanks to its unique box – type design, the end beam demonstrates excellent resistance to deformation and torsion when subjected to complex external forces.
Precise Adaptation to Heavy – load Scenarios：In the applications of large – tonnage and ultra – large – tonnage cranes, especially in places like port terminals and heavy – machinery manufacturing workshops where safety requirements are extremely high and the working environment is relatively stable, it can perfectly meet the needs of high – intensity operations, effectively boosting the production efficiency of the industry.


Disadvantages
Relatively heavy self – weight：To ensure sufficient strength and stability, a large amount of steel is required in the manufacturing process of the box – type end beam, which leads to an increase in its self – weight.
Difficult internal inspection and maintenance：The box – type end beam has a closed structure, and its internal space is not easily accessible. Conventional inspection methods are difficult to comprehensively cover, making it hard to detect problems in a timely manner.
Relatively high cost：The box – type end beam has high requirements for welding quality and a relatively complex manufacturing process. Coupled with the extensive use of materials, the manufacturing cost is relatively high.

3.If you have any requirements related to cranes, you are welcome to contact us. We will customize a free exclusive solution for you, fully meeting your personalized needs and facilitating the efficient progress of your project.
