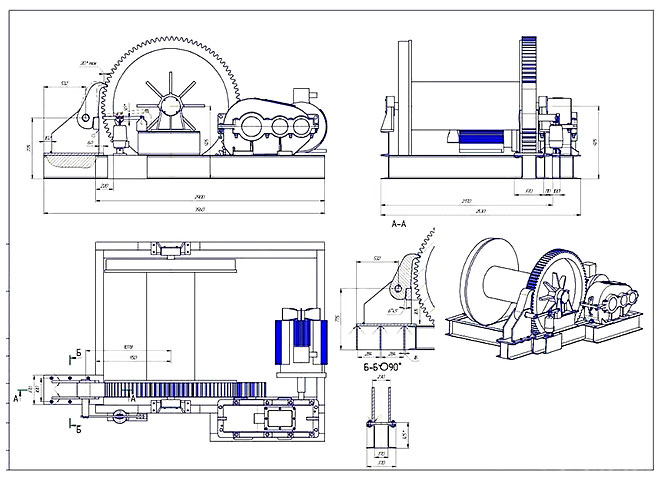

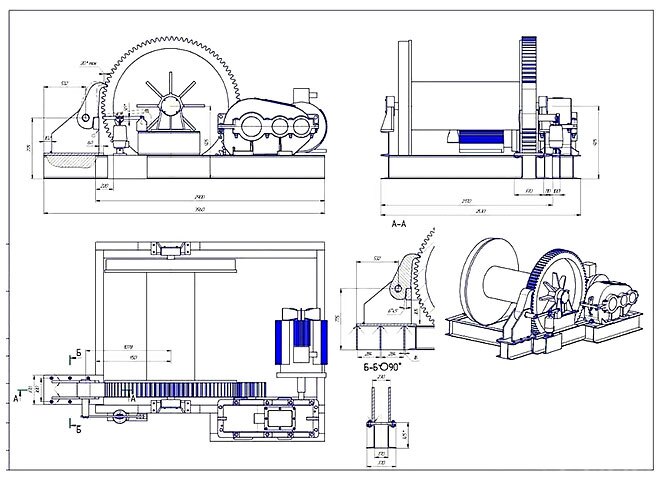

The Structure Sketch

Benefits At A Glance

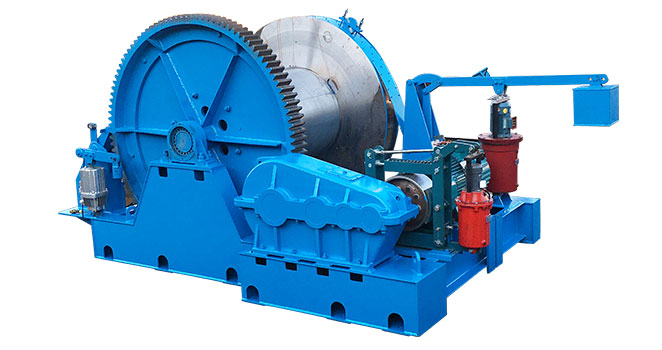

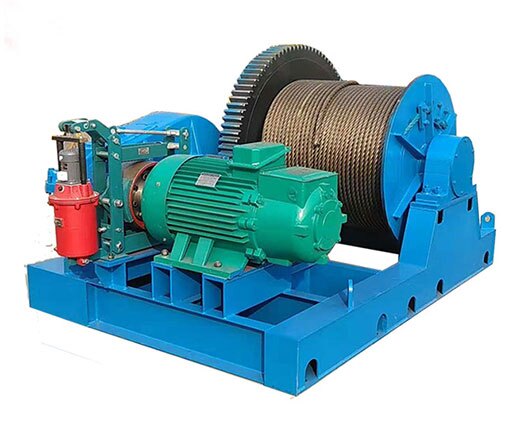

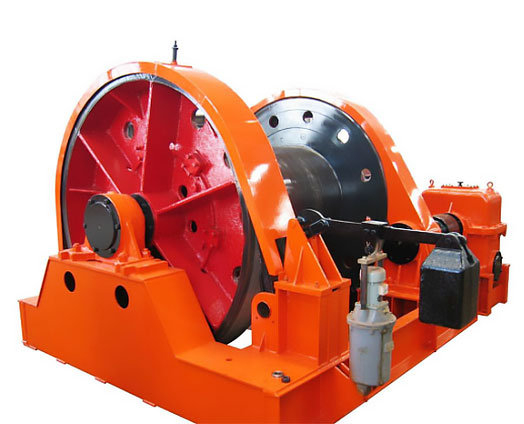

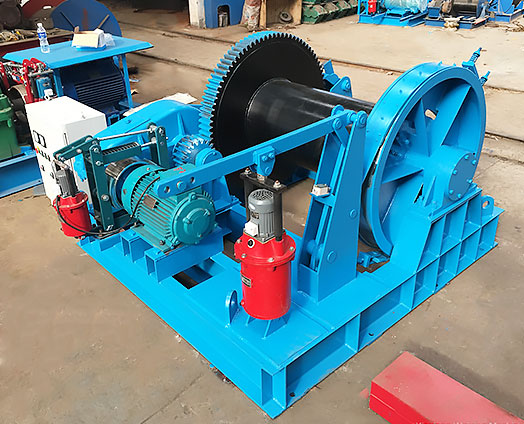

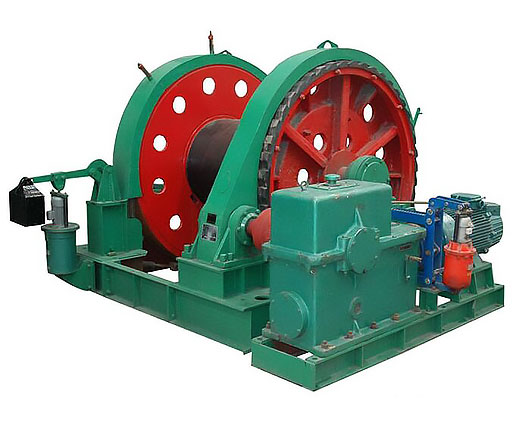

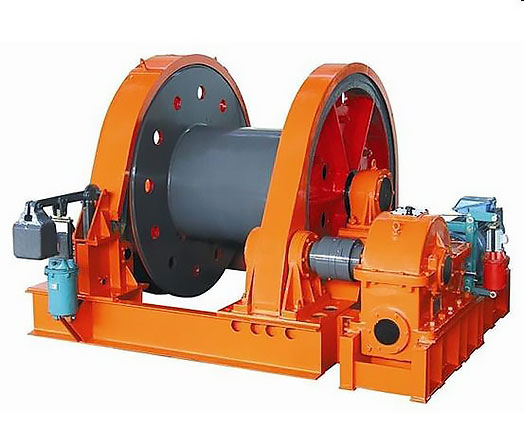

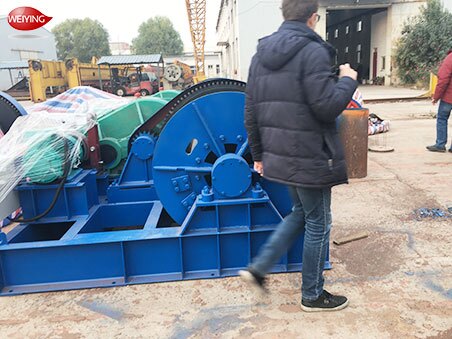

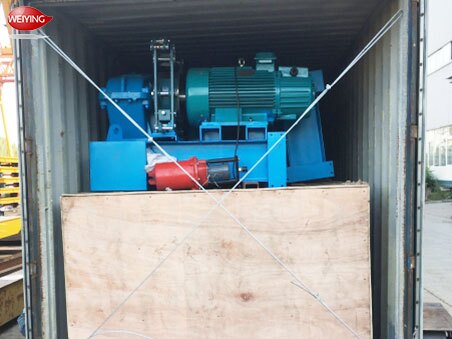

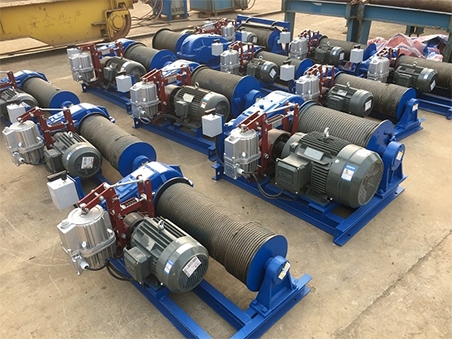

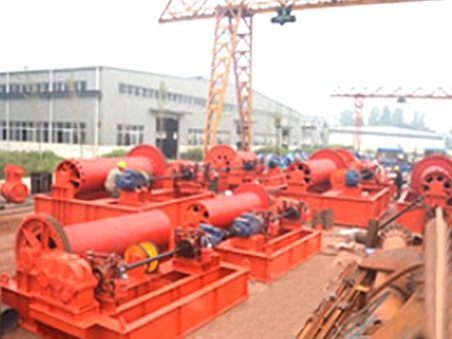

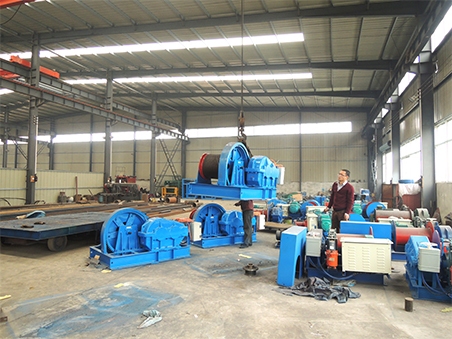

JZ Series Shaft Sinking Winch: JZ series shaft sinking winch has the advantages of strong lifting capacity, large rope capacity and stable operation.
Purpose: it is mainly used for the tension rope of hanging hanging tray, water pump, air duct, compressed air duct, grouting pipe and other excavation equipment in the shaft excavation engineering of coal mine, metal mine and non-metal mine shaft. It can also be used for other underground and ground lifting heavy objects.

Technical Data

Loading capacity: 0.5~200 t

Rope capacity: 20~3600 m

Working speed: 5~20 m/min;(single speed and dual speed)

Power supply: 220-690V, 50/60HZ, 3Phase

JZ series sinking winches It is mainly used to hang swinging tray, water pump, wind-cone, compressed air cylinder and grouting pipe in the excavation works in the metal ores, non-metallic mine. It also can be used to lift heavy objects underground or on the ground.

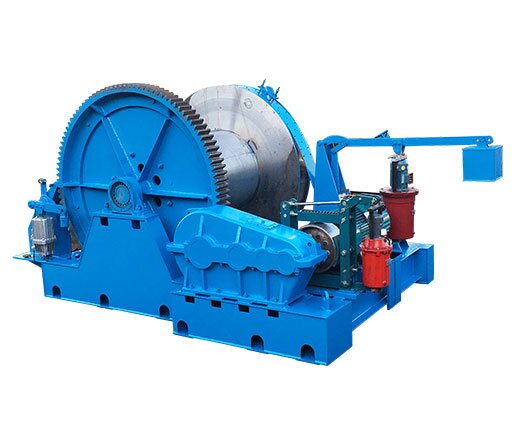

JZ Type Sinking winch
Model	Steel wire most greatly static tensity (KN)	Drum capacity (m)	Steel wire fast speed (m/min)	Steel wire fast speed (m/min)	Steel wire diameter (mm)	Steel wire diameter (mm)	Motor voltage (V)	Motor voltage (V)	Motor voltage (V)
JZ-5/400	50	400	6	3	23	11	380	237519701340	3140
JZ-10/600	100	600	6	3	31	22	380	303725701170	6250
JZ-10/800	100	800	6	3	31	22	380	334229061825	6500
JZ-16/800	160	800	6	3	40	30	380	335832002240	11480
JZ-16/1000	160	1000	6	3	40	37	380	335832002240	11700

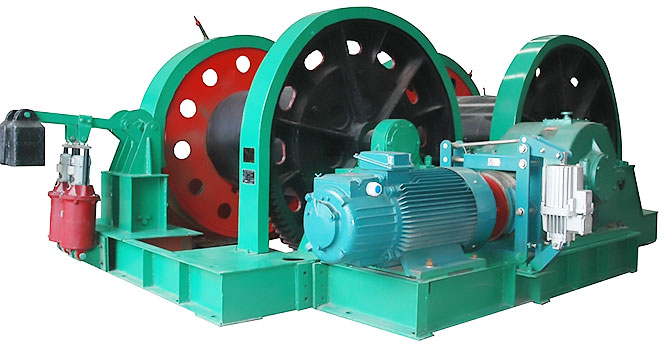

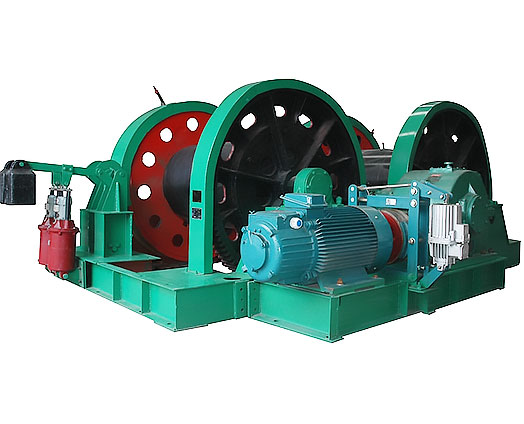

2JZ Type Sinking winch
Model	Steel wire most greatly static tensity (KN)	Drum capacity (m)	Steel wire fast speed (m/min)	Steel wire fast speed (m/min)	Steel wire diameter (mm)	Motor power (KW)	Motor voltage (V)	Motor voltage (V)	Motor voltage (V)
2JZ-5/400	2x50	2x400	6	3	23	22	380	311525791300	6000
2JZ-10/600	2x100	2x600	6	3	31	37	380	443628731770	11250
2JZ-10/800	2x100	2x800	6	3	31	37	380	427029231770	13560
2JZ-16/800	2x160	2x800	6	3	40	55	380	547334402240	20840
2JZ-16/1000	2x160	2x1000	6	3	40	55	380	547336902240	21072

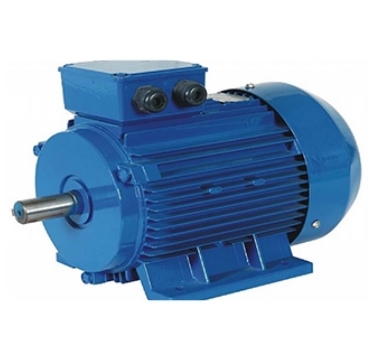

	Motor Metallurgical and crane three phase induction motor, Sufficient solid copper motor, The service life can reach, 1 million times High protection, level ,Support double speed.

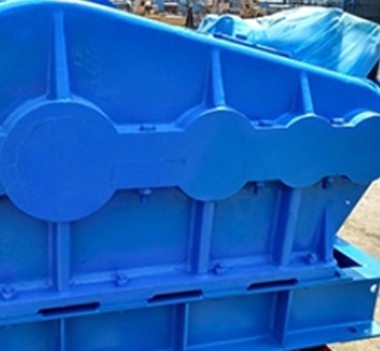

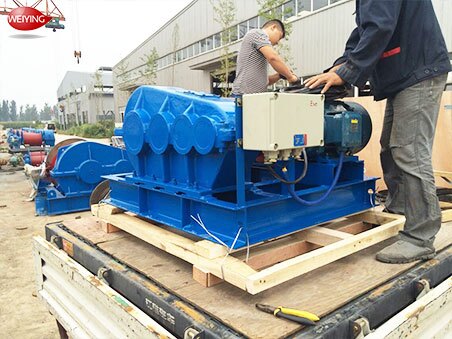

	Reducer Reducer reducer adopts spherical worm gear pair to reduce speed, plus one-stage speed change gear. Change the fast and slow position of the speed change handle, and you can change the fast and slow speeds.

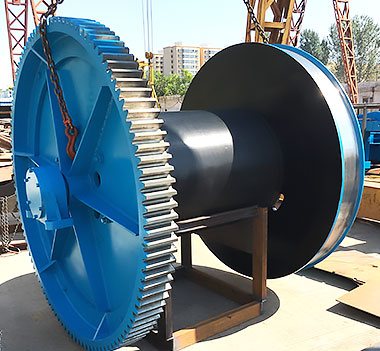

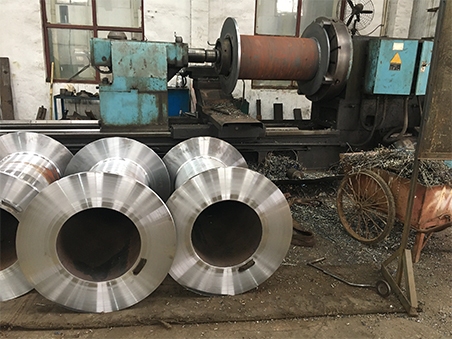

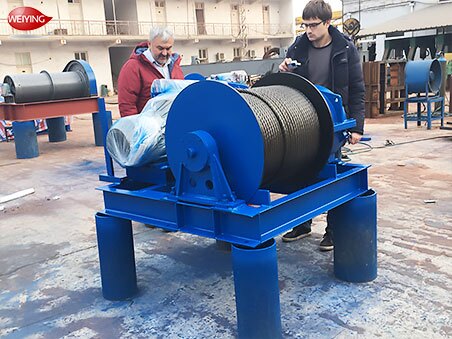

	Drum Forged with high-quality aloy steel material, special thickened steel wire rope drum, greater load-bearing capacity and safer use

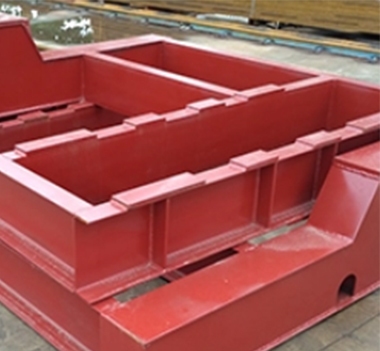

	Channel steel base The base is thickened and reinforced, work more stably,safe and stable, and solve the trouble of shaking.

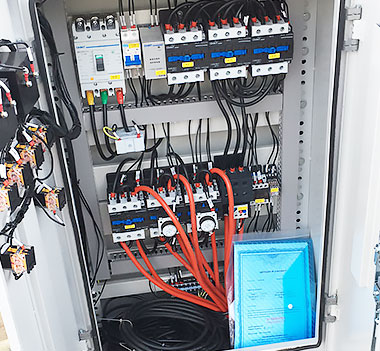

	Electric box Schneider or CHNT brand, popular and famous electrics company in the world or China brand.

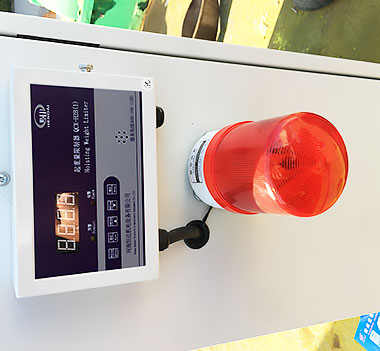

	Safety device 1.Weight limiter. 2.Sound and light alarm devices.
