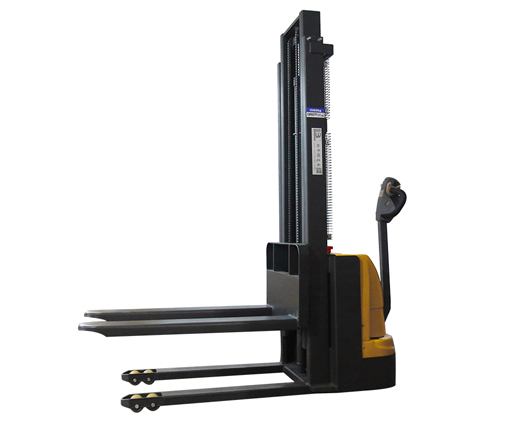

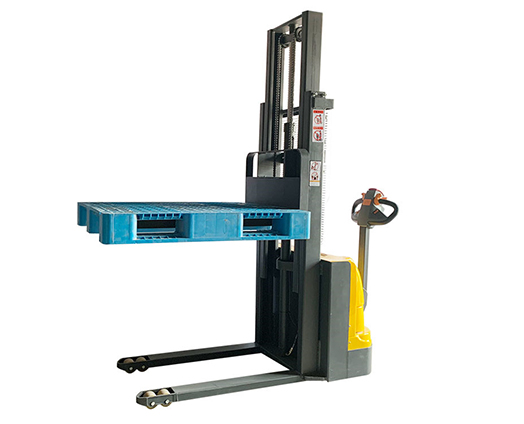

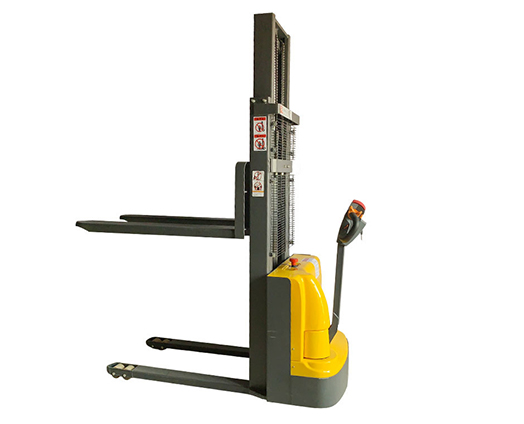

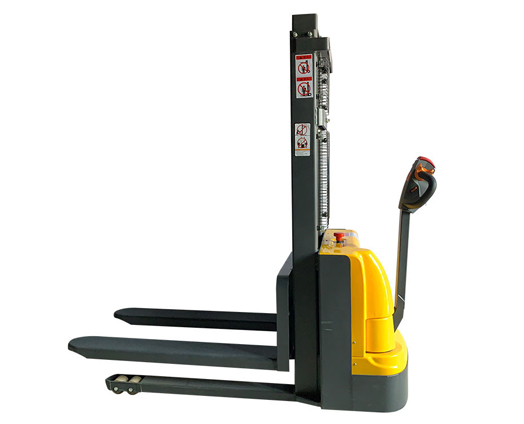

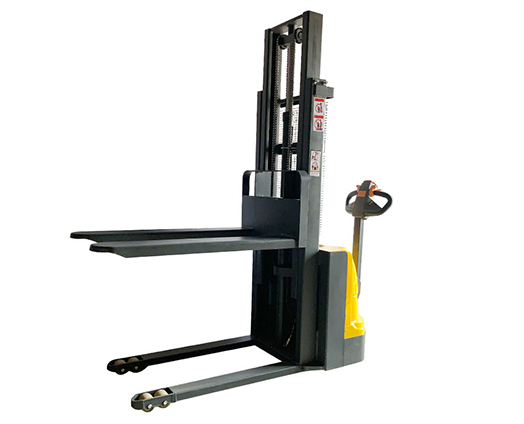

product description

The electric stacker is a kind of storage equipment with battery power as the energy source and the motor as the power source. Its main function is to lift heavy objects to the required height. It is generally used in warehouses, workshops and other places where logistics is required. When used with pallets, it can greatly improve the efficiency of storage.

Main Features

(1) Battery provides power for walking and lifting

(2) Simple and convenient operation

(3) Load capacity 1ton, 1.5ton

(4) Lifting height 1.6-3.5m

(5) The main structures include: batteries, motors, hydraulic pumps, cylinders, piston rods, forks, chains, controllers and other devices.

Supply Scope

Our company supply the electric stacker with load capacity : 1ton 1.5ton , lifting height : 1.6-3.5m.

Technical Data

Model



CTD10R-E

CTD-15R-E

Capacity

(kg)

1000

1500

Load centre distance

c(mm)

600

Load distance, centre of drive axle to fork

x(mm)

770

Fork height, lowered

h13(mm)

80

Height, mast lowered

h1(mm)

2145/1895/2145

2140/1890/2140

Height, mast extended

h4(mm)

2145/3100/3600

Max. lift height

h3(mm)

1600/2500/3000

Overall length

l1(mm)

1500

Length to face of forks

l2(mm)

660

Overall width

b1(mm)

1132-1532

Fork dimensions

s/e/l(mm)

35/100/1070(1150)

Width overall forks

b5(mm)

200-800

Aisle width for pallets 800x1200lengthways

Ast(mm)

2280

Turning radius

Wa(mm)

1490

Travel speed, laden/unladen

(Km/h)

4.5/5

Lifting speed, laden/unladen

(m/s)

0.09/0.14

0.08/0.11

Battery Voltage, normal capacity K5

V/Ah

24/105(125)

24/125

Truck weight(with battery)

(kg)

490/555/575

580/645/665

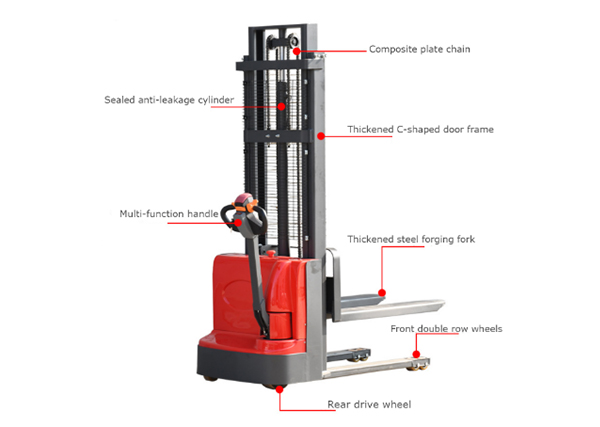

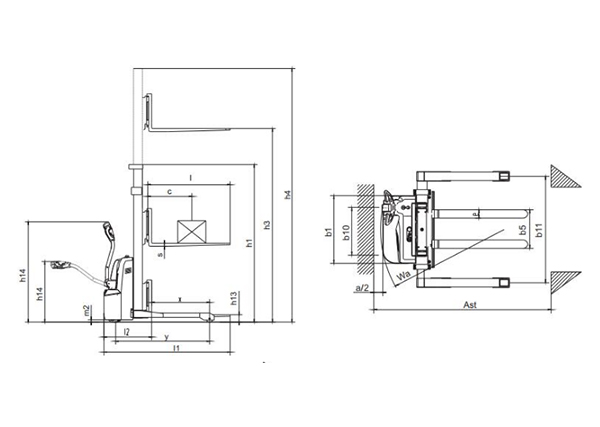

The structure sketch

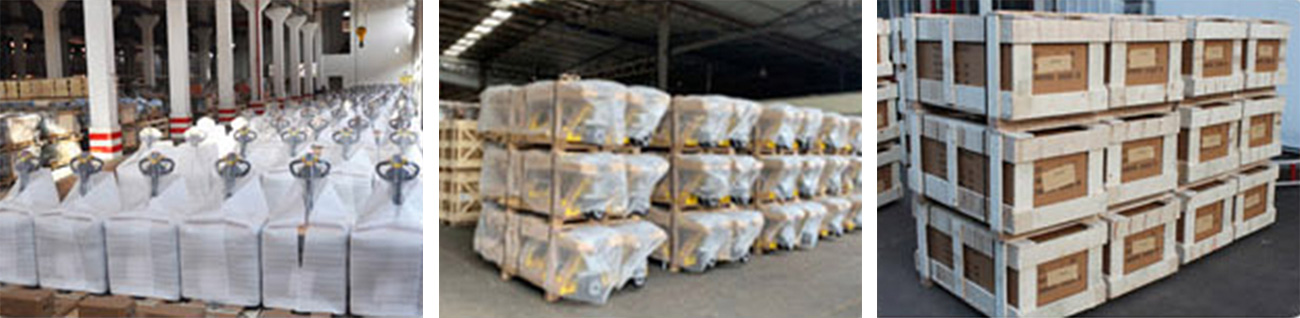

Packing
